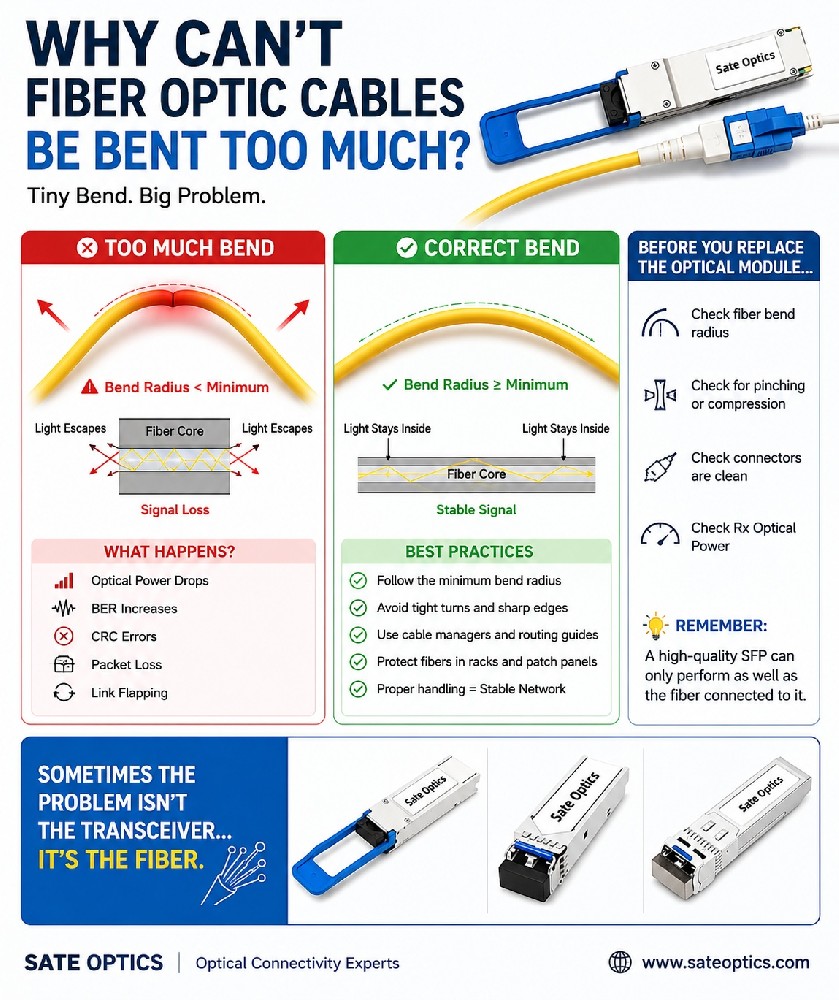

Why Can't Fiber Optic Cables Be Bent Too Much? Understanding Bend Radius, Signal Loss, and Network Stability

In modern data centers, enterprise networks, and telecom infrastructure, fiber optic cables are the backbone of high-speed communication. They connect switches, routers, servers, and optical transceivers operating at speeds from 1G to 800G.

Yet many network failures are caused by something surprisingly simple:

Improperly bent fiber optic cables.

When a fiber cable is bent beyond its minimum bend radius, it can increase signal attenuation, reduce optical power, create packet loss, and even damage the fiber permanently. In many cases, engineers replace an optical transceiver first—only to discover later that the real problem was the fiber patch cable.

Let's explore why fiber bend radius matters and how proper cable management helps ensure stable network performance.

What Is Fiber Bend Radius?

Fiber bend radius is the minimum radius a fiber optic cable can be bent without negatively affecting optical performance or causing physical damage.

When the bend is too tight, part of the light traveling inside the fiber core escapes through the cladding instead of continuing toward the receiver.

The result?

• Increased insertion loss

• Lower received optical power (Rx Power)

• Higher Bit Error Rate (BER)

• Reduced link stability

Think of it like a highway. If the road suddenly becomes extremely narrow and sharply curved, traffic slows down or accidents happen. Light behaves similarly inside an optical fiber.

What Happens When Fiber Is Bent Too Much?

1. Signal Loss Increases

Fiber optic communication depends on light remaining inside the fiber core through total internal reflection.

When the bend becomes too sharp:

• Light leaks out of the fiber

• Optical attenuation increases

• Receiver sensitivity becomes insufficient

Even a high-quality optical transceiver cannot compensate for excessive optical loss.

2. Packet Loss and CRC Errors

As optical power drops, network devices begin receiving corrupted data.

Typical symptoms include:

• Packet loss

• CRC Errors

• Frame errors

• Link Flapping

• FEC correction increases

• Reduced throughput

Many network administrators immediately suspect the switch or optical module, when the root cause is often the fiber routing itself.

3. Fiber May Break Internally

Fiber is made from ultra-pure glass.

Although protected by jackets and reinforcement layers, repeated sharp bends can create microscopic cracks inside the glass.

Sometimes the cable looks perfectly normal externally while the internal fiber has already been damaged.

This often leads to intermittent network problems that are difficult to diagnose.

Why Engineers Often Misdiagnose the Problem

When a network link goes down, the usual troubleshooting sequence is:

• Replace the optical transceiver

• Replace the switch port

• Check switch configuration

However, one critical component is frequently overlooked:

The fiber patch cable.

Before replacing your SFP or QSFP module, always inspect:

• Fiber bend radius

• Cable routing

• Connector cleanliness

• Connector damage

• Optical power levels

Many "bad transceivers" are actually perfectly healthy.

Best Practices for Fiber Cable Management

Proper cable management dramatically improves network reliability.

Follow these recommendations:

✔ Respect the Minimum Bend Radius

Never force fiber cables around sharp rack corners or cable trays.

✔ Avoid Excessive Cable Tension

Pulling fiber too tightly can create stress that increases optical loss.

✔ Use Cable Management Accessories

Cable managers, routing guides, and patch panels help maintain proper fiber routing.

✔ Keep Connectors Clean

Dust contamination can introduce more signal loss than several meters of fiber.

Always inspect and clean LC, SC, MPO, and MTP connectors before installation.

✔ Measure Optical Power

If available, verify Rx optical power using an optical power meter or Digital Diagnostic Monitoring (DDM) supported by your optical transceiver.

The Relationship Between Fiber and Optical Transceivers

An optical transceiver converts electrical signals into optical signals—and vice versa.

Whether you're using:

• 1G SFP

• 10G SFP+

• 25G SFP28

• 40G QSFP+

• 100G QSFP28

• 200G QSFP56

• 400G QSFP-DD

• 800G OSFP

the module relies on clean, properly managed fiber to deliver optimal performance.

A premium optical transceiver connected to a damaged or sharply bent fiber will still experience signal degradation.

Stable networks require both reliable optics and proper fiber infrastructure.

Typical Applications

Proper fiber bend management is especially important in:

• AI Data Centers

• Cloud Computing Infrastructure

• Enterprise Campus Networks

• Telecom Backbone Networks

• ISP Networks

• FTTx Deployments

• High-Performance Computing (HPC)

• Storage Area Networks (SAN)

• 5G Transport Networks

• Industrial Ethernet Networks

Related Optical Transceiver Models

This topic applies to a wide range of optical modules, including:

1G Optical Modules

• Cisco GLC-SX-MMD Compatible SFP

• Cisco GLC-LH-SMD Compatible SFP

10G Optical Modules

• Cisco SFP-10G-SR Compatible

• Cisco SFP-10G-LR Compatible

• Cisco SFP-10G-ER Compatible

• Cisco SFP-10G-ZR Compatible

25G Optical Modules

• Cisco SFP-25G-SR-S Compatible

• Cisco SFP-25G-LR-S Compatible

100G Optical Modules

• Cisco QSFP-100G-SR4-S Compatible

• Cisco QSFP-100G-LR4-S Compatible

• Cisco QSFP-100G-ER4 Compatible

400G Optical Modules

• Cisco QDD-400G-SR8-S Compatible

• Cisco QDD-400G-DR4-S Compatible

• Cisco QDD-400G-FR4-S Compatible

800G Optical Modules

• OSFP 800G SR8

• OSFP 800G DR8

• QSFP-DD800 SR8

These modules are widely used in modern data centers and require proper fiber installation to achieve their specified transmission distance and performance.

Frequently Asked Questions (FAQ)

Why does bending a fiber optic cable cause signal loss?

Sharp bends allow part of the optical signal to escape from the fiber core, increasing attenuation and reducing the optical power reaching the receiver.

Can a bent fiber cable permanently damage the network?

The network itself won't be damaged, but repeated excessive bending can permanently damage the fiber cable and create unstable connections.

Should I replace the optical transceiver if I experience packet loss?

Not immediately. First check:

• Fiber bend radius

• Fiber cleanliness

• Connector condition

• Optical power levels

• Cable routing

These are often the real causes of intermittent link issues.

Are higher-speed optical modules more sensitive to fiber quality?

Yes. As transmission speeds increase to 100G, 400G, and 800G, optical power budgets become tighter, making proper fiber installation and cable management even more critical.

How can I prevent fiber damage inside a data center?

Use professional cable management systems, maintain the recommended bend radius, avoid excessive tension, clean connectors regularly, and perform periodic optical inspections.

Conclusion

A stable fiber optic network depends on more than just high-quality optical transceivers.

Even the best SFP, SFP+, SFP28, QSFP28, QSFP-DD, or OSFP module cannot compensate for a poorly installed or sharply bent fiber cable.

Before replacing expensive networking equipment, inspect the fiber path. A simple bend correction may restore full network performance and save valuable troubleshooting time.

Proper fiber management, clean connectors, and reliable optical transceivers work together to deliver the high-speed, low-latency connectivity modern networks demand.
