A practical DWDM optical transport solution for expanding bandwidth over existing fiber infrastructure in metro, ISP, and data center networks using DWDM SFP 80km modules and MUX/DEMUX systems.

In modern telecom and enterprise network deployments, fiber infrastructure is becoming one of the most limited and expensive resources.

As bandwidth demand continues to grow rapidly, especially in metro networks, ISPs, and data center interconnect (DCI) scenarios, operators are facing a common challenge:

👉 How to increase capacity without deploying new fiber routes?

The answer is a scalable optical transport architecture based on DWDM (Dense Wavelength Division Multiplexing) technology.

By combining DWDM SFP 80km optical transceivers with MUX/DEMUX modules, multiple high-speed channels can be transmitted over the same fiber infrastructure, significantly improving network capacity and efficiency.

What is DWDM SFP 80km?

DWDM SFP 80km is a small form-factor pluggable optical transceiver designed for long-distance DWDM transmission.

Each module operates on a specific wavelength channel (such as CH40, CH41, CH42, CH43, etc.), enabling multiple independent data streams to coexist on a single fiber link.

When deployed with a DWDM MUX/DEMUX system, these channels are combined at the transmit side and separated at the receive side.

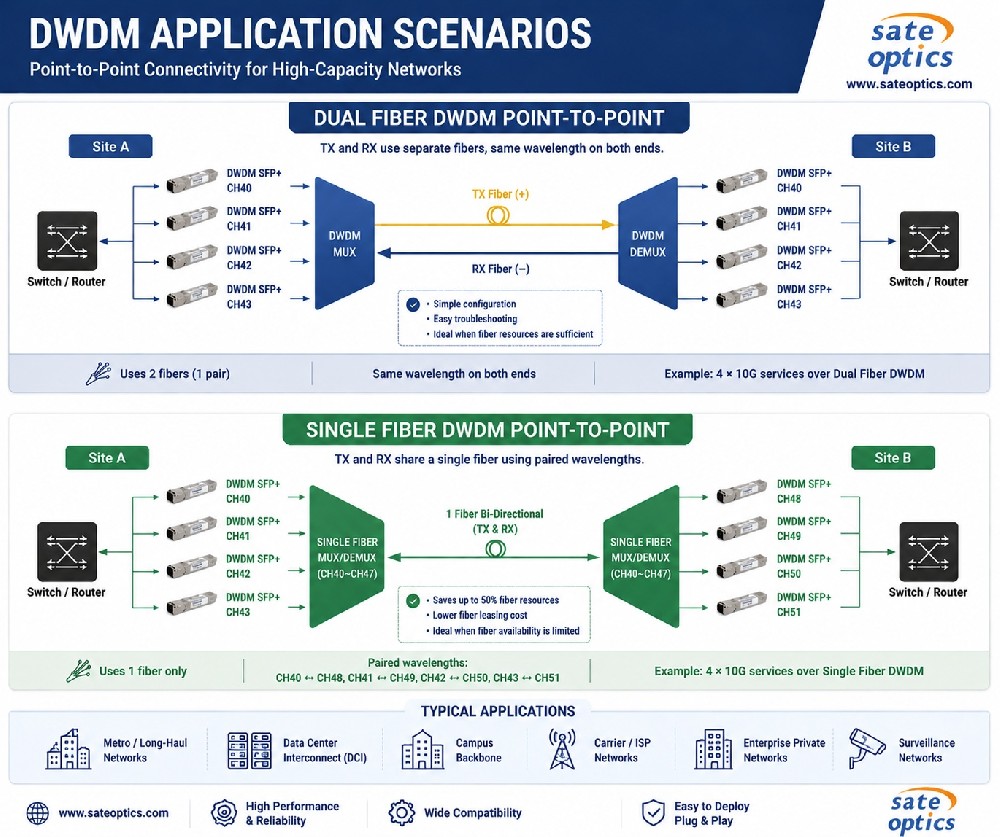

Typical DWDM Network Architecture

A standard DWDM point-to-point deployment includes:

• Switch / Router → DWDM SFP (80km) at Site A

• DWDM MUX/DEMUX for wavelength aggregation

• Single fiber or fiber pair transmission link

• DWDM DEMUX → Switch / Router at Site B

Common channel mapping examples include:

• CH40 ↔ CH48

• CH41 ↔ CH49

• CH42 ↔ CH50

• CH43 ↔ CH51

This structure allows multiple services to be carried simultaneously over the same physical fiber infrastructure.

Key Benefits of DWDM SFP + MUX/DEMUX Solution

✔ Increase fiber capacity up to 8× or more
✔ Extend transmission distance up to 80km
✔ Reduce dependency on new fiber deployment
✔ Support multiple wavelength channels on one fiber
✔ Scalable and future-proof architecture
✔ Compatible with existing switches and routers

Application Scenarios

The DWDM SFP 80km solution is widely used in:

📡 ISP Backbone Networks

Efficiently expand metro and regional network capacity

🏢 Enterprise Campus Networks

Connect multiple buildings over long distances

☁ Data Center Interconnect (DCI)

Enable high-capacity interconnection between data centers

🌆 Metro Ethernet Networks

Support high-density urban communication infrastructure

🔌 Fiber-Limited Environments

Maximize bandwidth where fiber resources are constrained

SATE Optics provides a full range of DWDM optical solutions, including:

• DWDM SFP 80km (multi-channel wavelength options)

• DWDM SFP 40km / 80km

• Cisco / Juniper / Huawei compatible optical transceivers

• DWDM MUX/DEMUX (8CH / 16CH / 40CH)

• Custom wavelength planning and network design support

Why Engineers Choose DWDM Solutions

Instead of increasing physical fiber deployment, DWDM technology allows operators to:

👉 Multiply capacity over existing fiber infrastructure

This significantly reduces both deployment cost and implementation time while improving scalability for future network expansion.

FAQ

1. What is DWDM SFP used for?

DWDM SFP is used for long-distance optical transmission over specific wavelengths, enabling multiple channels over a single fiber.

2. What does 80km mean in DWDM SFP?

It refers to the maximum transmission distance supported under standard optical link conditions in metro and backbone networks.

3. Is MUX/DEMUX required for DWDM SFP?

Yes. MUX/DEMUX devices are required to combine and separate multiple wavelength channels in DWDM systems.

4. Can DWDM reduce fiber usage?

Yes. DWDM technology allows multiple data streams to be transmitted over a single fiber, significantly reducing fiber consumption.

5. What are CH40, CH41, CH42, CH43?

These are DWDM wavelength channels used to assign different optical frequencies for multiplexed transmission.

Conclusion

As fiber resources become increasingly limited, DWDM technology provides a scalable and cost-effective solution for modern network expansion.

By combining DWDM SFP 80km transceivers with MUX/DEMUX systems, operators can significantly increase capacity without changing existing fiber infrastructure.

Call to Action

Looking for a reliable DWDM optical solution?

SATE Optics provides:

✔ DWDM SFP 80km modules
✔ Full MUX/DEMUX solutions
✔ Wavelength planning support
✔ Compatibility testing and samples
