10G ZR vs DWDM: Which Solution Is Better for 80km+ Aggregation Links?

As internet traffic continues to grow, many Internet Service Providers (ISPs), regional carriers, and enterprise network operators face the same challenge:

How do you efficiently connect sites located more than 80km apart?

When planning an aggregation or backbone link, two common options are often considered:

• 10G ZR Optical Transceivers

• DWDM (Dense Wavelength Division Multiplexing) Systems

While both technologies can support long-distance transmission, the right choice depends on network capacity requirements, fiber availability, scalability plans, and overall project budget.

This article explains the differences in a simple way to help network engineers make the right decision.

Understanding 10G ZR Optics

10G ZR optical transceivers are designed for long-distance 10Gbps Ethernet transmission.

Typical specifications include:

• Data Rate: 10Gbps

• Wavelength: 1550nm

• Reach: Up to 80km

• Interface: SFP+

• Fiber Type: Single-Mode Fiber (SMF)

Because they are directly installed into switches and routers, 10G ZR modules provide a straightforward way to build long-distance links without requiring additional transport equipment.

Advantages of 10G ZR

✔ Lower deployment cost

✔ Simple network architecture

✔ Fast installation

✔ Minimal maintenance

✔ Ideal for dedicated point-to-point links

Limitations of 10G ZR

✖ One service per fiber pair

✖ Limited scalability

✖ Higher fiber consumption as traffic increases

Understanding DWDM Systems

DWDM technology allows multiple optical wavelengths to be transmitted over a single fiber pair simultaneously.

Instead of dedicating one fiber pair to one service, DWDM enables multiple services to coexist on the same infrastructure.

A DWDM system may carry:

• Multiple 10G channels

• 25G channels

• 100G channels

• 400G services

all over the same fiber pair.

Advantages of DWDM

✔ Maximizes fiber utilization

✔ Supports network growth

✔ Enables higher aggregate capacity

✔ Reduces the need for new fiber deployment

✔ Ideal for backbone and metro networks

Limitations of DWDM

✖ Higher initial investment

✖ More complex deployment

✖ Additional equipment required

✖ Increased operational complexity

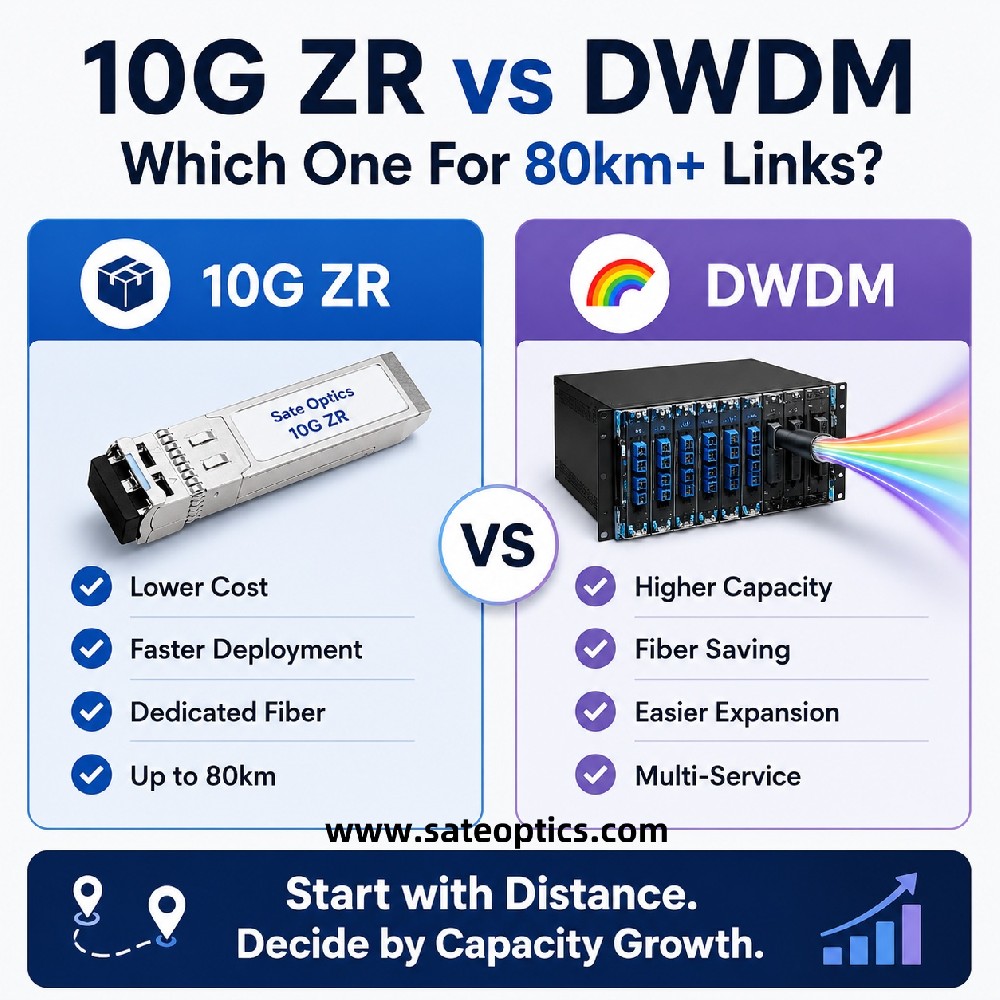

10G ZR vs DWDM Comparison

10G ZR

Best for:

• Single 10G services

• Small ISP deployments

• Dedicated links

• Dark fiber availability

• Budget-sensitive projects

Benefits:

• Lower Cost

• Faster Deployment

• Dedicated Fiber

• Up to 80km Reach

DWDM

Best for:

• Metro aggregation networks

• Regional backbone networks

• Multi-service transport

• Fiber-constrained environments

• Future network expansion

Benefits:

• Higher Capacity

• Fiber Saving

• Easier Expansion

• Multi-Service Support

When Should You Choose 10G ZR?

10G ZR is often the most practical choice when:

• Only one or a few 10G circuits are required

• Fiber resources are abundant

• Fast deployment is critical

• Budget control is a priority

For many small and medium ISPs, deploying 10G ZR optics can provide an excellent balance between performance and cost.

When Should You Choose DWDM?

DWDM becomes more attractive when:

• Multiple services share the same route

• Fiber availability is limited

• Traffic growth is expected

• Long-term scalability is important

Although the upfront investment is higher, DWDM often delivers lower cost per bit as network capacity increases.

A Simple Decision Framework

Many network planners use the following rule:

Choose 10G ZR if:

✅ You need a few 10G links today

✅ Fiber is available

✅ Simplicity matters

Choose DWDM if:

✅ Traffic will continue growing

✅ Multiple services share the route

✅ Fiber resources are limited

✅ Long-term expansion is expected

Conclusion

Distance alone should not determine your transmission strategy.

For 80km+ aggregation links, the real decision is often based on:

• Available fiber resources

• Current bandwidth requirements

• Future capacity growth

• Project budget

10G ZR offers simplicity and lower upfront costs.

DWDM offers scalability and maximum fiber efficiency.

The best solution depends on where your network is today—and where it needs to be tomorrow.
