Why Most SFP Outages Are Not Caused by Distance


When a fiber link becomes unstable, the first assumption many engineers make is distance limitations.

But in real production networks, distance is rarely the true cause of SFP failures.

In most cases, outages are caused by optical margin erosion over time, not by exceeding the maximum transmission distance.

A link that works perfectly on day one may start showing errors weeks or months later.

Understanding why this happens is essential for building reliable data center and telecom networks.


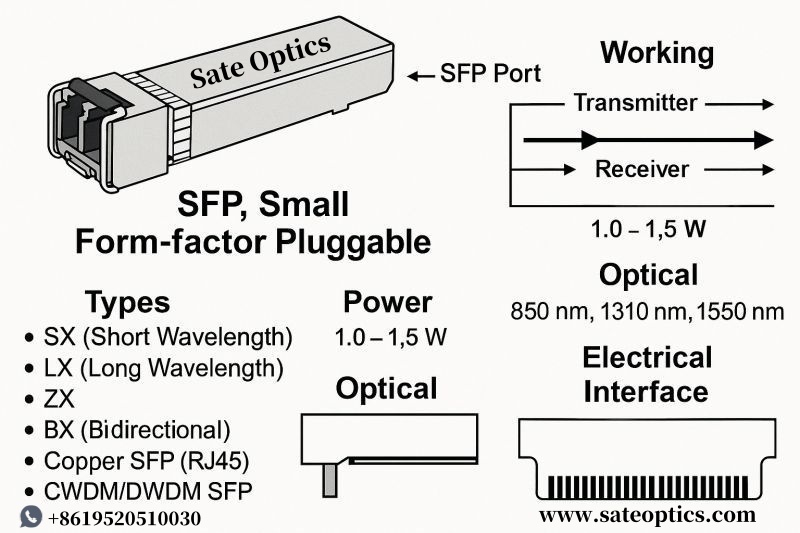

What Happens in Real Network Environments

During initial deployment, everything usually appears correct:

  • The correct optical transceiver type is installed

  • The fiber distance is within specification

  • The link comes online immediately

At this stage, the network appears stable.

However, after some time, network monitoring tools may begin reporting issues such as:

  • CRC errors

  • BIP errors

  • Random instability under traffic load

  • Intermittent link drops

When these problems appear, distance is often blamed first.

But distance is usually just the visible symptom rather than the root cause.


The Real Causes of Optical Link Instability

In many real-world deployments, optical link failures result from multiple small factors interacting together.

1. Compatibility Behavior Between Network Vendors

Many networks today operate with equipment from multiple vendors, including Cisco Systems, Juniper Networks, Arista Networks, and Huawei Networks.

Although compatible optical modules are widely used, subtle differences in:

  • Firmware implementation

  • EEPROM coding

  • Signal tolerance thresholds

can sometimes cause instability under certain operating conditions.

This is why compatibility testing is critical when selecting optical modules.


2. Thermal Changes Inside Network Cabinets

Temperature fluctuations inside racks or cabinets can significantly affect optical module performance.

Higher temperatures can lead to:

  • Increased laser bias current

  • Reduced optical power output

  • Higher signal noise levels

Over time, these changes reduce the available optical power margin, making the link more sensitive to other issues.


3. Optical Power Budget Miscalculations

Even when a fiber link is within the specified distance, the optical power budget may be too tight.

Real-world deployments often include additional losses such as:

  • Patch panels

  • Fiber splices

  • Aging fiber infrastructure

  • Connector insertion loss

These factors gradually reduce the available margin.

A link that initially works within specification may later become unstable.


4. Connector Contamination and Fiber Hygiene

Fiber optic connectors are extremely sensitive to contamination.

Small particles such as dust or oil residue can cause:

  • Increased insertion loss

  • Signal reflection

  • Intermittent optical errors

Proper fiber inspection and cleaning procedures are essential to maintain stable optical links.


Why Modern Networks Monitor Optical Telemetry

Instead of treating optics as simple plug-and-play components, many network operators now capture baseline data during installation.

Common parameters recorded include:

  • Tx optical power

  • Rx optical power

  • Module temperature

  • Laser bias current

  • Vendor and EEPROM information

These parameters are monitored over time to detect performance drift before failures occur.


A Practical Model for Managing Optical Links

Some network operators manage fiber links using a simple operational model:

Normal

Degraded

Quarantine

If optical parameters drift beyond acceptable thresholds for an extended period, traffic can be rerouted before a full outage occurs.

This proactive approach helps maintain high network availability.


The Reality Behind “Plug-and-Play” Optics

Optical transceivers are often marketed as plug-and-play networking components.

This works well when the network has generous optical margins.

However, as networks evolve toward 100G, 400G, and higher speeds, margins become tighter and links become more sensitive to:

  • Environmental conditions

  • Vendor compatibility behavior

  • Optical power drift

  • Infrastructure aging

This is where most real network incidents begin.

Understanding these factors allows engineers to design networks that are more stable and resilient.


FAQ: SFP Troubleshooting and Optical Link Stability

What is the most common cause of SFP link failure?

The most common cause is optical margin degradation over time, often due to temperature changes, connector contamination, or compatibility behavior between network equipment and optical modules.


Does fiber distance usually cause SFP outages?

No. As long as the link is within the specified optical budget, distance rarely causes outages. Most failures occur due to margin loss or environmental factors.


How can engineers prevent optical link instability?

Engineers can improve reliability by:

  • Monitoring optical telemetry data

  • Maintaining proper fiber cleaning procedures

  • Designing networks with sufficient optical margin

  • Using fully tested compatible optical modules


Are compatible optical transceivers safe to use?

High-quality compatible optical modules that are properly tested can perform reliably across major networking platforms when deployed within the correct optical specifications.


Key Takeaway

In production networks, SFP outages are rarely caused by fiber distance.

Most failures occur when multiple small factors slowly reduce the optical power margin over time.

By monitoring optical telemetry and maintaining proper fiber infrastructure practices, network operators can significantly improve network reliability and uptime.
